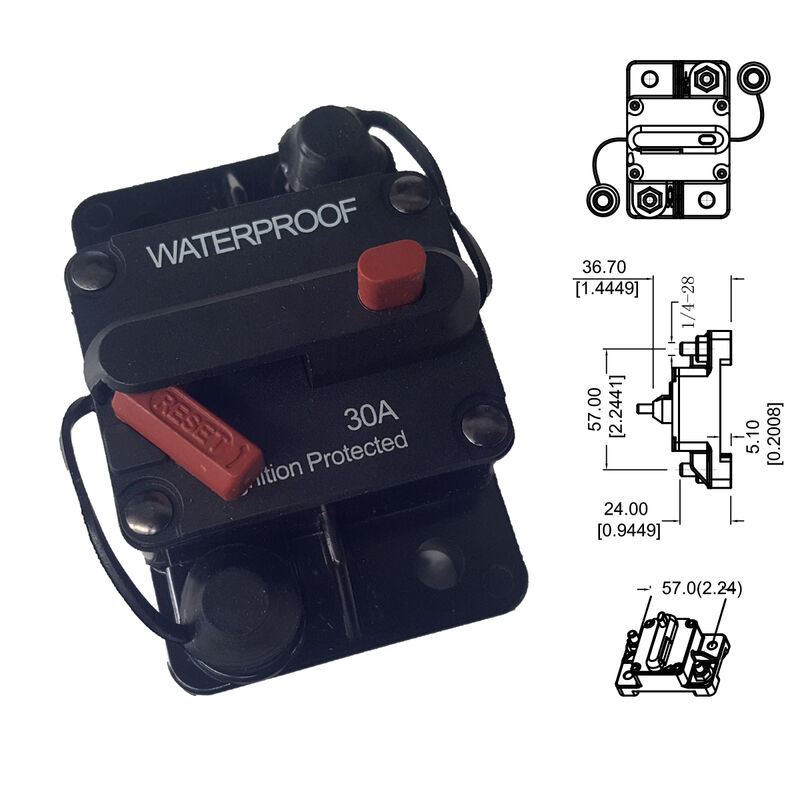

Surface Mount Circuit Breakers 30A-150A

High current circuit breaker.

Widely used in special vehicles, off-road vehicles winch, yachts and ships electrical control.

Surface mount and protective stud insulators included.
Rated Current: 30-150 AMP
Interrupt Rating: 3KA@48VDC
Housing is thermal plastic UL rated 94V0
Splash and dust proof at IP67 grade.
Operating temp: -32°C to 82°C (-25°F to 180°F)
Storage temp: -34°C to 149°C (-30°F to 300°F)
Stud size: M6 and 1/4"-28 threads per inch.
Torque rating: 50in-lb (5.6Nm) max
Compliance SAE J1625; SAE J1171, UL1500 Ignition Protect
